Combining Geotechnical and Structural Inputs for Solar Mounting

This guide explains how to combine geotechnical inputs for solar mounting with structural reactions, foundation response, installation evidence and verification. It does not choose a foundation, prescribe investigation quantities or supply universal soil parameters. Its purpose is to keep the design loop traceable so each discipline knows what it received, what it assumed, what it returned and which change requires a new release.

1. Define the joint decision before exchanging data

Begin with the decision and design stage, not a request to “send the soil report.” A feasibility screen, budget quotation, preliminary layout, foundation trial, detailed design and construction release require different certainty. The issue sheet should name the mounting architecture, support or foundation concept under consideration, project zone, governing design basis, required output, responsible reviewer and downstream decision.

A useful interface register separates information that is observed, interpreted, selected for design and approved for release. Borehole logs and test results are observations. A ground model interprets their spatial meaning. Representative or design parameters require qualified selection under the adopted basis. A foundation schedule then applies those parameters to a defined reaction set and performance criterion. Keeping these states visible prevents a preliminary value from quietly becoming a final design input.

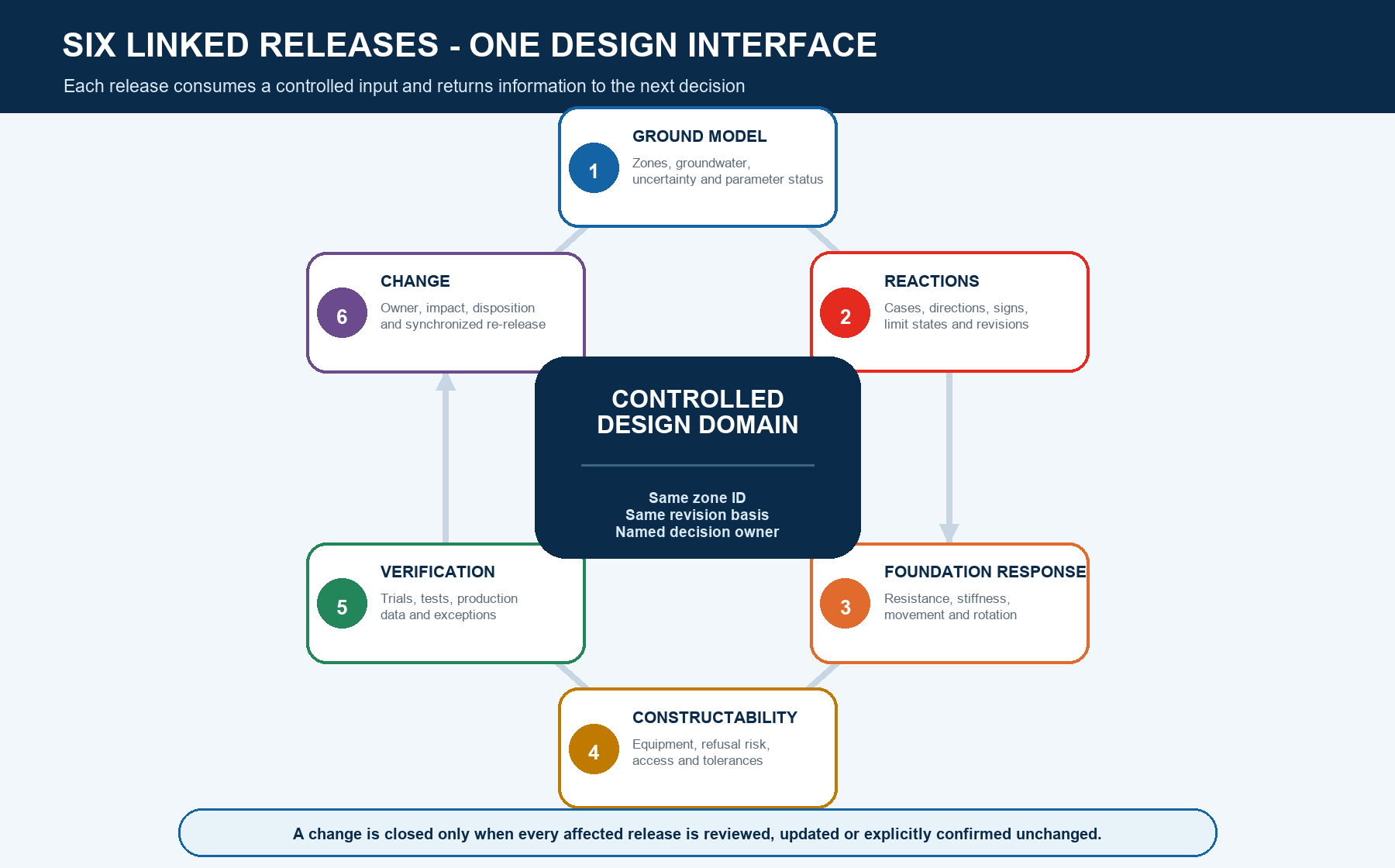

2. Use six linked releases instead of one final handoff

The interface is a loop, not a one-way transfer from geotechnical to structural. The ground model creates design domains. Structural reactions describe demand at supports. Foundation response converts ground and element behavior into resistance and serviceability information. Constructability checks whether the concept can be installed with the proposed equipment and tolerance. Verification tests selected assumptions. Change control returns new evidence to every affected release.

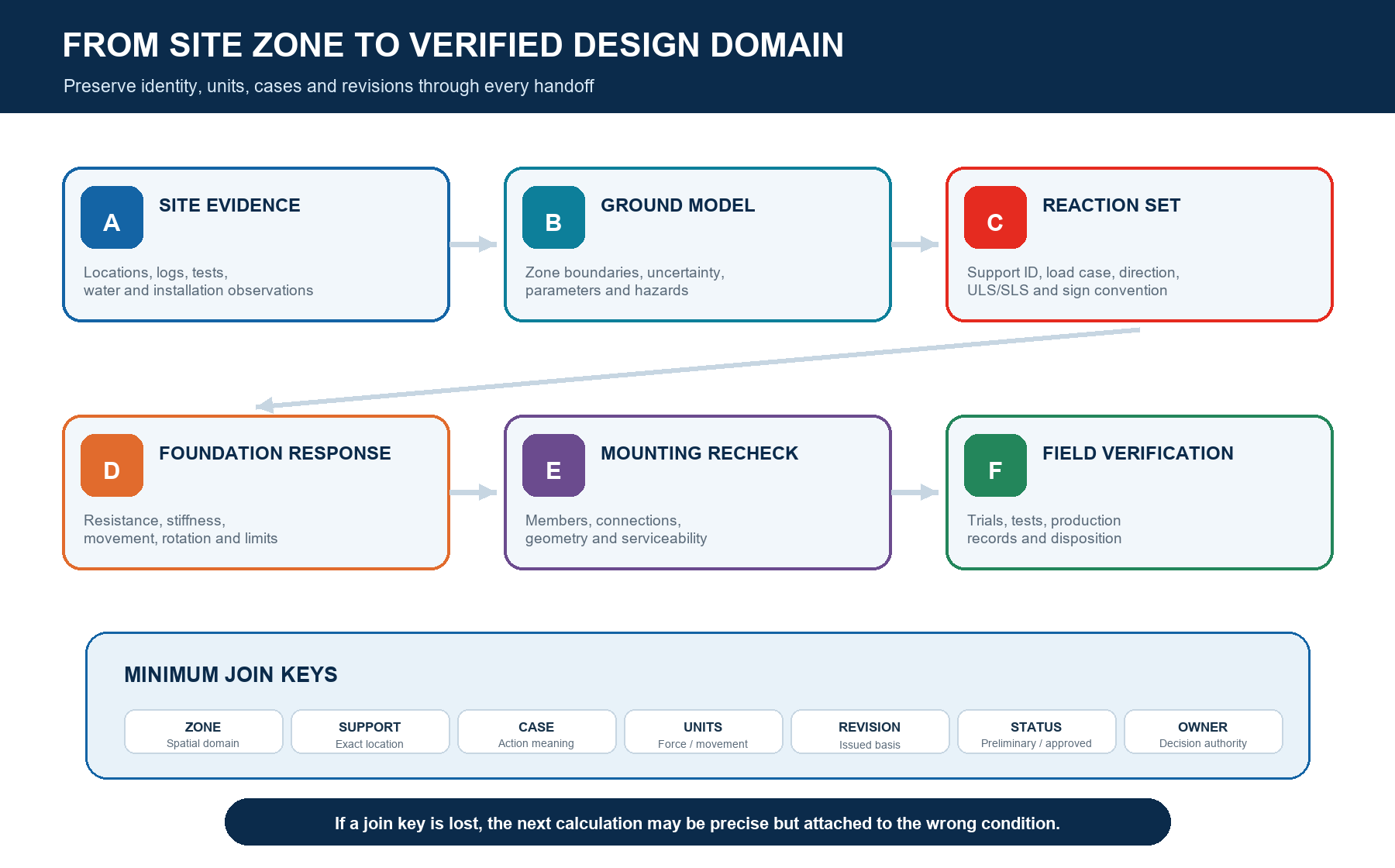

Each release needs common join keys: zone ID, support or table ID, coordinate system, load-case identifier, units, revision, status and owner. If one key is lost, the next calculation may be precise but attached to the wrong location or design state. Do not close a change merely because a revised drawing exists; close it when the affected releases are updated or explicitly confirmed unchanged.

3. Translate the ground model into structural design domains

A borehole map is not yet a structural design map. The geotechnical team should define zones that can be joined to the layout: boundaries, elevation or depth references, relevant ground units, groundwater conditions, obstructions, aggressive conditions, variability and confidence. Where interpolation is uncertain, show the uncertainty rather than extending a single investigation point across an entire array.

The European Commission's JRC guidance on assembling a Ground Model describes a site-specific representation built from investigations and other information, progressively upgraded as knowledge increases. Its companion guidance on representative values distinguishes measured, derived, representative, characteristic and design values. Those terms belong to the adopted project framework; they should not be collapsed into one unlabeled spreadsheet column.

4. Issue structural reactions as an intelligible data set

Foundation design needs more than the largest vertical force. Issue reactions at the defined foundation or support reference point, with axes, sign convention and units. Retain compression, uplift, shear and moment components for each relevant load combination or response case. Identify ultimate and serviceability use, operating and stow states where applicable, and whether listed values occur together. A maximum assembled from different cases is not automatically a physically compatible design action.

ASCE/SEI 7-22 publicly describes environmental loads and load combinations, including provisions relevant to ground-mounted solar facilities. The adopted jurisdiction, code edition and project designer still control the actual actions and combinations. A module or tracker product rating is not a substitute for the site's structural design basis.

5. Return foundation response—not a single capacity number

The foundation team should return information the mounting model can use. Resistance may depend on direction, load interaction, ground zone, installation method and element configuration. Serviceability response may require axial, lateral or rotational stiffness, movement at a stated load level, differential behavior or a bounded nonlinear model. Constructability may limit section size, embedment, installation angle, equipment access or tolerance even when a calculation appears adequate.

Do not treat soil stiffness as one universal spring or “allowable bearing” as a complete foundation definition. State whether the response is a preliminary sensitivity, a design value, a test-calibrated relationship or an acceptance limit. Identify the analysis point and sign convention, as well as behavior outside the intended range. If the mounting model needs a matrix or curve, a single scalar value may hide coupling or directionality.

6. Recheck the mounting structure with support behaviour

Once the foundation response is available, return it to the PV support structure model. Check whether support flexibility changes member forces, connection demand, table twist, tracker alignment, drive behavior or serviceability. Review differential settlement and rotation across a table rather than only the movement of one isolated support. Confirm that the foundation reference point matches the structural node and that any baseplate, post projection or eccentricity between them is modeled consistently.

Reconcile every support ID and coordinate with the current layout and ground-zone map.

Apply the returned response to the stated direction, load range, limit state and revision.

Check member and connection strength together with geometry and serviceability effects.

Reissue reactions if the foundation location, stiffness, restraint, embedment or layout changes.

Record sensitivities when ground or support behavior remains preliminary.

7. Link trial installation and load testing to assumptions

Field verification should answer pre-agreed questions. A trial installation can test equipment access, installation sequence, refusal risk, achievable geometry and record quality for the tested conditions. A load test can characterize a defined load-movement response for an identified element and ground condition. Production records can show whether installation observations remain within the approved control route. None of these automatically represents every foundation or zone.

ISO 22477-1:2018 provides a public scope for maintained static axial compression testing of piles. IEC 62817:2014+A1:2017 addresses design qualification of solar trackers and their systems. A product qualification result and a site foundation test answer different questions; neither removes the need for a site-specific interface and approved interpretation route.

8. Control production data and field exceptions

Production should not be a separate information stream. Link each installed element to its design zone, configuration and applicable drawing. Record the fields required by the approved installation plan—such as location, date, equipment, element identity, achieved geometry, relevant installation observations and exceptions—without implying that one observation is a universal capacity measurement.

When refusal, unexpected ground, excessive deviation, damaged protection, groundwater or a geometric conflict appears, preserve the original record and open a unique exception. The disposition should identify affected supports, the technical reviewer, the chosen action, any retest or redesign, and every document requiring update. Do not solve a field problem with an undocumented length, section, location or installation change.

9. Manage changes through a two-way register

A change register should start at the first affected decision and travel both ways. A module or table geometry change can alter reactions. A new ground zone can alter foundation response and quantity. A trial installation can reveal a constructability limit that changes the foundation concept and rack detail. A drainage or grading change can affect ground levels, water conditions, exposure and installation access.

10. Use decision gates instead of “geotechnical complete”

“Geotechnical complete” hides the intended use. Replace it with gates that state which decision may proceed. A preliminary ground model may support sensitivity studies but not fabrication. A verified zone and reaction set may support final foundation selection but still await trial installation. A signed design basis may release drawings while selected construction zones remain subject to hold points.

11. Prevent common interface failures

The ground report is issued without a layout-linked zone map or stated confidence.

Reaction maxima are copied without load cases, signs, units, axes or compatibility.

One generic soil spring or capacity is applied to every support without a defined domain.

Foundation resistance is checked but support settlement, lateral movement or rotation is omitted.

A foundation or post detail changes without reissuing the structural model and reactions.

Trial installation or load-test evidence is detached from element identity, zone and configuration.

Installation torque is treated as proof of capacity without an approved project correlation.

A field exception is repaired physically but never closed in the calculations, drawings or records.

Preliminary values lose their status and appear in fabrication or construction documents.

The supplier review is treated as a substitute for project structural or geotechnical responsibility.

12. Assemble one combined design basis

The combined design basis should be an indexed set, not one oversized report. Each item may remain owned by its discipline, but the index shows the current approved relationship. Include the project basis, layout and zone map; structural model and reaction schedule; ground investigation and interpretation; selected parameter register; foundation analysis and response schedule; constructability assessment; trial/test plan and records; durability basis; interface and change registers; drawings, BOM and signed release status.

Assign one interface coordinator to run periodic reconciliation without taking technical responsibility away from either designer. The reconciliation should compare support counts, zone assignments, coordinates, reaction revisions, foundation configurations, open assumptions and field dispositions. Record mismatches as actions with an owner and required date. A meeting note that says “aligned” is weaker than a controlled comparison showing which two revisions were checked and which exceptions remain open.

13. What to send East Baoyu

For an efficient supplier engineering review, send the controlled project basis and a specific decision question. Include the current module and mounting architecture, layout with support IDs, design actions and reaction schedule, ground investigation and zone map, foundation concept, target materials/durability, performance criteria, installation constraints, test or trial requirements, programme, quantity by zone and open changes.

Review East Baoyu's Solar Mounting, Screw Piles, Quality & Manufacturing and Certification & Evidence Center pages before requesting a project-specific review. East Baoyu can clarify supplier-side configuration, drawings, production evidence and open interfaces within an agreed scope. The project's qualified designers retain responsibility for design inputs, calculations, testing interpretation, acceptance and construction release.

Request an engineering review

Send the layout, support IDs, design stage, reaction schedule, ground-model zones, foundation concept, installation constraints, available test evidence and exact review question. East Baoyu will identify usable supplier-side information, missing joins and the appropriate review route without silently converting preliminary assumptions into approvals.

Questions? Chat with East Baoyu on WhatsApp. Fast reply on capacity, price, configuration and available product videos.

Open WhatsApp: +86 130 1228 3281

Email the engineering review package: info@eastbaoyu.com

Frequently asked questions

What geotechnical inputs are needed for solar mounting design?

The answer depends on the mounting architecture, foundation concept, design stage and site. A controlled package commonly identifies ground and groundwater conditions, design zones, relevant hazards and obstructions, parameter status, uncertainty, constructability and required verification. Investigation quantity, depth and methods must be selected by the project's qualified team rather than copied from a universal list.

Should geotechnical or structural design be completed first?

Neither discipline should wait for a single final handoff. Start with a preliminary layout, ground model and reaction basis, then iterate. Structural demand informs the geotechnical questions; foundation response informs the structural model. Release gates should state which decisions are allowed while inputs remain preliminary.

Can one foundation capacity be used across the whole solar site?

Only when the responsible designers justify the applicable design domain and all relevant conditions. Capacity may vary with ground zone, element configuration, installation, load direction and limit state. Stiffness, movement, rotation, constructability and durability can govern even when a headline resistance value appears adequate.

How should structural reactions be issued to the foundation designer?

Provide support identity and reference point, coordinates, axes, sign convention, units, load case or combination, ULS/SLS purpose, component compatibility, geometry, relevant performance criteria, model revision, status and assumptions. Avoid a table of unlabeled maxima assembled from different cases.

Do trial installation and load testing close the design interface?

They can verify defined assumptions when their purpose, coverage, configuration, method and acceptance route are approved in advance. A trial installation does not by itself prove design resistance, and one load test does not automatically represent every zone, foundation, load mode or long-term condition.

When must a foundation or ground change return to the structural model?

Return it whenever support position, elevation, inclination, stiffness, restraint, eccentricity, connection, movement, rotation, configuration or applicable zone changes. The structural reviewer should assess affected members, connections, geometry, serviceability and reactions, then issue or confirm the synchronized revision.
