Solar Tracker Wind Load and Stow Strategy: Structural and Control Coordination

A stow angle is not a substitute for the design process. The project must define the wind climate, terrain, array aerodynamics, tracker geometry, response time, sensor logic, loss-of-power behaviour and evidence that the commanded state is actually achieved across the field.

Wind/stow coordination in one table

Freeze the wind design basis

Document the governing standard, site coordinates, design working life, wind-speed definition, return basis, air density assumptions, terrain category, topographic effects, directionality, seasonal conditions and any local authority requirements. Make sure the same wind definition reaches the structural engineer, tracker supplier, wind consultant and controls team.

Site layout changes exposure. Edge rows, corners, gaps, elevation changes and nearby structures can experience different loads from interior rows. Mountain ridges, escarpments and complex terrain require particular care. The design should identify zones or envelope coefficients rather than applying an unexplained single pressure to the entire plant.

Where wind-tunnel, computational or other aerodynamic studies are used, state the tested geometry, scale, turbulence representation, row spacing, ground clearance, angle range and applicability limits. A study for a different chord, module arrangement or tracker configuration may not transfer without review.

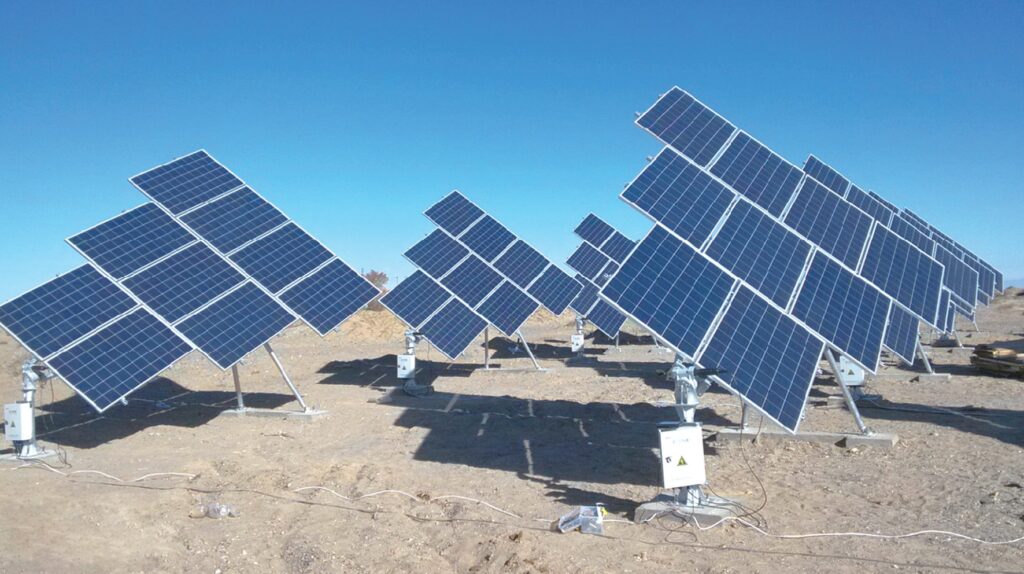

Model every relevant tracker state

Normal operation includes a range of angles, not only a representative daytime position. Check structural actions on modules, rails, purlins, torque tubes, bearings, drives, posts, foundations and connections. Include deformation limits that protect modules, driveline alignment and clearance as well as strength.

The stowed state needs a defined angle and tolerance. Manufacturing, assembly, backlash, foundation movement and control accuracy mean not every row will sit at an identical ideal angle. The structural model should cover the permitted band and any directional stow logic.

Transition can be critical because some rows are already stowed while others remain exposed or are moving. Wind may increase during the move. Assess intermediate angles, unbalanced array states and torsional effects. If the strategy uses staggered starts to manage electrical demand, include that delay in the time-to-safe-state analysis.

Define trigger logic from the design assumptions

The trigger should use a measurable quantity with a documented relationship to the structural design basis. Define averaging or gust window, filtering, persistence, hysteresis, reset threshold and data-quality checks. Without these details, two controllers can interpret the same wind event differently.

Set sufficient margin for detection, processing, communication, actuator start, field sequencing and full travel before the design boundary is exceeded. Consider cold conditions, low voltage, mechanical resistance and the slowest credible row. A threshold copied from another tracker or site is not a verified strategy.

Protective commands should override energy-optimising tracking. Define how manual control, maintenance lockout, snow or hail modes, backtracking and remote operator commands interact with wind stow. The event log should show which rule commanded a move and whether every row confirmed completion.

Design sensing and communications for adverse conditions

Sensor locations should represent field exposure without being dominated by wake, local obstruction or an unrepresentative low point. A large or complex site may need multiple sensors and zoned logic. Define calibration, range, sampling, heating or environmental protection, health monitoring and replacement interval.

Logic for disagreement or loss of a sensor must be explicit. Options include voting, conservative fallback to a healthy sensor, zonal stow or plant-wide protective action. The safest response depends on site architecture, but “use the last value indefinitely” is rarely a sufficient fault strategy.

Communications should detect stale data, lost packets and unavailable row controllers. Provide time synchronisation so wind readings, commands, position feedback and alarms can be reconstructed after an event. Cybersecurity controls should prevent unauthorised commands without blocking local protective functions.

Plan power-loss and mechanical-fault behaviour

Backup energy is a maintained function, not a one-time equipment selection. Temperature, ageing, repeated moves and parasitic loads affect available capacity. Define monitoring, periodic discharge or functional tests, replacement criteria and alarm ownership.

Verify foundations and structural interfaces

Tracker wind loads reach the ground through posts and foundations. Issue reactions for relevant operating, transitional, stowed and fault cases, with coordinate directions and connection elevation. Foundation design should cover uplift, compression, lateral load, moment, cyclic response, movement and group or row interaction where applicable.

Installation tolerances affect drive alignment and actual stow position. Set survey and adjustment rules for foundation position, projection, inclination and head orientation. Do not force misaligned posts into the torque tube or use the drive system to correct a foundation error without structural and mechanical review.

For ground screws or driven posts, link field acceptance to the tracker model. The selected verification route must support the governing wind reactions and movement limits. Our guide to ground screw selection from site investigation provides the foundation workflow.

Commission the complete protective function

Factory testing can verify controller logic, interfaces and alarms, but site acceptance must test the installed sensors, network, drives, power and row geometry. Prepare a cause-and-effect matrix with input, condition, command, expected state, time allowance, feedback and alarm.

Site tests should cover normal high-wind command, threshold hysteresis, sensor loss, communication loss, auxiliary power loss, low backup energy, failed row, incorrect position feedback, manual override and recovery. Measure total time from qualifying input to confirmed safe position for representative and worst-case rows.

Record as-built firmware, parameter sets, sensor locations, calibration, row IDs and stow tolerances. Protect safety parameters through access control and change management. A firmware update or threshold change should trigger review of the structural-control basis and regression testing.

Operate with event and maintenance discipline

Before high-wind seasons, inspect sensors, drives, fasteners, bearings, wiring, backup energy and row alignment. Review alarms and incomplete stow events instead of clearing them without investigation. Vegetation, new buildings or temporary equipment can change sensor representativeness and access.

After a significant wind event, preserve logs and inspect according to a risk-based plan. Compare wind history, commands, travel times, final positions, faults and structural observations. If the field entered a state outside the verified envelope, involve the design authority before returning to normal operation.

Define operational ownership before handover. The control-room team needs clear alarm priorities, escalation contacts and authority to keep an affected block unavailable. Maintenance staff need safe isolation, manual-move and return-to-service procedures. Periodically compare the installed parameter set with the approved baseline; an undocumented threshold, delay or firmware change can invalidate the coordinated wind strategy even when the hardware appears unchanged.

Frequently asked questions

What is the best stow angle?

There is no universal angle. It depends on tracker geometry, array aerodynamics, wind direction, structural response, drive capability and the evidence used for that configuration.

Can one anemometer control the whole plant?

It may be sufficient for a compact, uniform site if justified, but large or complex terrain often needs multiple sensors or zones. The design should address representativeness and sensor failure.

Should trackers stow immediately at one gust?

The logic should define averaging, persistence and filtering while retaining enough response time. Over-sensitive logic can cause unnecessary cycles; slow logic can miss the safe-state window.

What if one row cannot stow?

The system should alarm, identify the row and follow a preplanned fault response. The structural design should identify credible non-stowed cases, and operations should know when a field inspection or engineering assessment is required.

Does IEC tracker qualification replace project wind design?

No. Product qualification and project-specific structural, geotechnical, aerodynamic and controls design serve different purposes. Both should be integrated in the project evidence plan.
