Ground Screw Piles for Solar Farms
Purpose of this page. Ground screws for solar farms must convert repeated table or tracker reactions into a zoned pile schedule that can be installed, tested and traced across the site. It explains the engineering and procurement route without treating a catalog example as an approved project model.
Application decision context
A large site can contain different soils, groundwater, obstructions, grading and structural reactions. One pile length or helix configuration may not suit every zone. Geotechnical interpretation, trial installation and the project verification plan are used to establish the production route.
Required project inputs
- Array layout, table or tracker reactions and tolerances
- Geotechnical profile, groundwater, obstructions and frost information
- Survey, grading, drainage and installation access
- Design life, soil and atmospheric corrosivity
- Proof and production test locations, loads and acceptance criteria
Configuration and interface route
Lead section, shaft, helix, extensions, coupling and head detail are coordinated with soil layers and the supported mounting interface. The pile schedule can vary by terrain or reaction zone. The head must provide adjustment and bolt access without creating an unapproved eccentricity.
Manufacturing and verification plan
Trial installations record depth, torque, alignment, refusal and observations. Torque is used only where an approved project relationship exists. Proof or production tests follow stated load stages, hold times, movement criteria, sample frequency and release authority. Manufacturing records link material, dimensions and coating to pile batches.
Installation, logistics and site coordination
Set-out references connect pile IDs to table rows and test records. Refusal, damage or out-of-tolerance position follows an engineered exception. Packing and delivery by block can reduce sorting, while installation equipment and access are checked against terrain and weather conditions.
Design and supply boundaries
- Soil description alone does not select capacity
- Torque alone is not a universal capacity certificate
- Unexpected obstructions may require another foundation route
- Corrosion protection follows exposure and design life
Documents to define before release
- Zoned pile schedule and head-interface drawing
- Material and dimensional reports
- Coating or galvanizing report
- Trial and production installation records
- Proof or production test reports
- Exception log and release documentation
The Product Data Center shows how this application connects to the product family and configuration route. Public catalogs support orientation only. The approved calculation, drawing, bill of material, quotation, ITP and contract define the supplied scope. Use the Evidence Center to request the records applicable to the actual order.
Ground Screw Pile Technical Data Template
Use this template to define a project-specific pile schedule. Dimensions shown in a catalog are indicative until the reactions, ground, durability and connection requirements have been reviewed.
Required design inputs
- Compression, uplift, shear and moment reactions
- Geotechnical profile, groundwater, frost and obstructions
- Pile-head interface, tolerances and supported-system geometry
- Design life, soil/atmospheric corrosivity and inspection access
- Installation equipment, test locations and acceptance plan
Decision boundaries
- Not selected from soil description alone
- Installation torque is a control only where a project-specific relationship is approved
- Capacity requires design and the agreed verification method
- Coating and sacrificial thickness follow the exposure and design-life assessment
| Parameter | Published value status |
|---|---|
| Shaft type and diameter | By approved pile schedule |
| Wall / bar thickness | By structural and durability design |
| Length and extensions | By ground profile and installation criteria |
| Helix geometry | By load-transfer design |
| Material grade | By drawing and material specification |
| Head / coupling detail | By supported-system interface |
| Corrosion protection | By exposure and design life |
| Installation / test criteria | By approved method statement and test plan |
Project deliverables
- Approved pile schedule and interface drawing
- Material certificate and dimensional report
- Coating / galvanizing report where specified
- Installation record and exception log
- Proof / production test report where required
- Release documentation defined by the ITP
Acceptance rule
- Applicable standard and drawing revision identified
- Inspection characteristic, frequency and acceptance criteria defined
- Records linked to the actual batch, item or installation location
- Exceptions and release authority documented
Catalog dimensions and website examples are selection inputs only. The approved drawing, calculation, quotation, ITP and contract define the supplied product.
Request project data sheetProduct family → configuration → application → evidence
Configuration route
Lead sections, Extensions and couplings, Heads and brackets, Anchor accessories
Application pages
Solar farms · Carports and canopies · Fencing and signage · Temporary structures · Decking and boardwalks · Light buildings
Resources and evidence

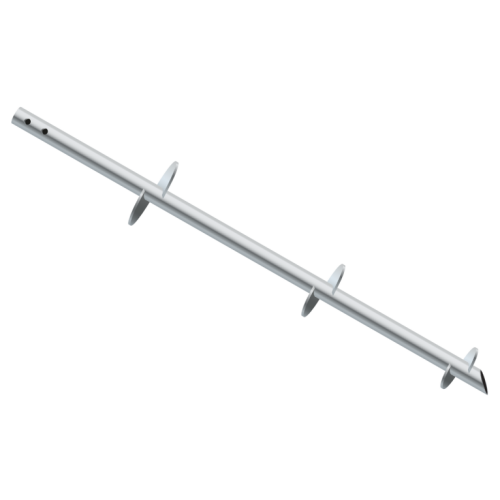

Catalog families cover round-pipe and square-bar lead sections, extensions, caps, brackets, adapters and anchor interfaces. Published catalog examples are not a project pile schedule.
