Ground Screw Piles for Fencing & Signage

Purpose of this page. Fence, barrier and sign foundations are often governed by wind, eccentricity, impact exposure, public access and repeated post geometry rather than vertical load alone. It explains the engineering and procurement route without treating a catalog example as an approved project model.

Application decision context

Panel solidity, sign area, height, post spacing, offset, gate reactions and roadside or public-safety rules can create substantial overturning and lateral demand. Soil and installation conditions must support those actions and any required serviceability limit.

Required project inputs

• Fence or sign geometry, solidity, height and post spacing
• Wind basis, terrain category and serviceability criteria
• Gate, impact, crowd or vehicle-proximity conditions
• Ground profile, services, slopes and installation access
• Post connection, adjustment, corrosion and replacement strategy

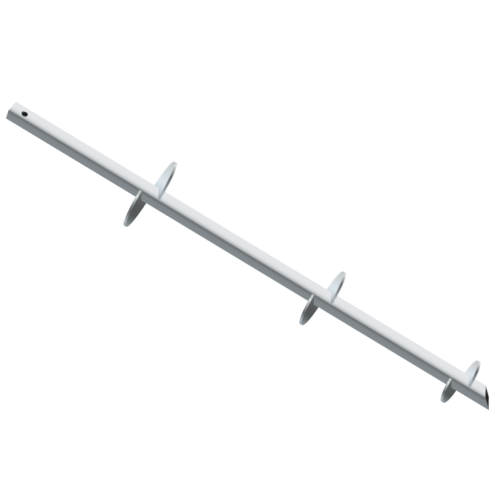

Configuration and interface route

Pile geometry and head connection are selected for the combined compression, uplift, lateral and moment demand. Offset brackets can increase eccentricity. Gates, large signs and end posts may need different foundations from intermediate fence posts.

Manufacturing and verification plan

Design and testing identify the governing load and acceptable movement. Installation records capture location, verticality, depth and exceptions. Material, weld, dimensions and coating records link the pile and adapter to the released schedule. Public-safety applications may require owner or authority witness points.

Installation, logistics and site coordination

Service locating, traffic or pedestrian management and edge-distance controls precede installation. Sloped verges, retaining structures and drainage need review. Damaged coating, misalignment or unexpected refusal follows a documented repair or redesign route.

Design and supply boundaries

• A small shaft is not selected from fence height alone
• Solid panels and signs require a wind-area calculation
• Impact capacity is not assumed
• Roadside and public applications may add authority requirements

Documents to define before release

• Fence or sign layout and reaction basis
• Ground and buried-service information
• Pile, post and adapter schedule
• Installation and proof-test criteria where required
• Material and coating records
• As-built and exception record

The Product Data Center shows how this application connects to the product family and configuration route. Public catalogs support orientation only. The approved calculation, drawing, bill of material, quotation, ITP and contract define the supplied scope. Use the Evidence Center to request the records applicable to the actual order.
