Carport & Canopy Ground Screws

Purpose of this page. Carport and canopy foundations combine column reactions with vehicle movement, finished levels, drainage, buried services and an occupied public or commercial environment. It explains the engineering and procurement route without treating a catalog example as an approved project model.

Application decision context

Column grid, clear height, roof or module layout, wind uplift, snow, vehicle-impact strategy, gutter discharge and electrical routes affect the foundation and head connection. A screw selected for a light fence is not automatically suitable for a cantilevered carport column.

Required project inputs

• Column grid, clearances, roof or module layout and reactions
• Wind, snow, seismic and accidental-impact strategy
• Geotechnical data, groundwater and buried-service survey
• Paving build-up, kerbs, drainage and finished levels
• Column-base geometry, bolt access and installation sequence

Configuration and interface route

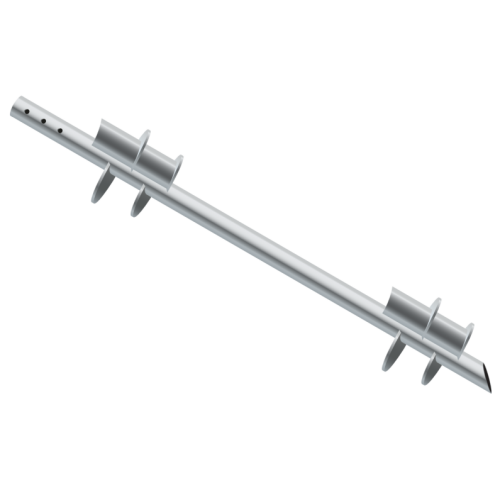

Pile shaft, helix, length and head detail follow compression, uplift, lateral and moment demand with the ground profile. The column interface must control eccentricity, adjustment, corrosion traps and bolt access. Drainage and finished levels are coordinated before head elevation is fixed.

Manufacturing and verification plan

The test plan addresses the governing load directions and sample strategy. Installation records identify location, depth, torque where approved, alignment and final level. Head plates, welds, dimensions and coating follow the manufacturing ITP and released column interface.

Installation, logistics and site coordination

Underground services are cleared before piling. Vehicle and pedestrian areas need segregation, temporary stability and controlled lifting. Paving and drainage trades coordinate around final head elevations; unapproved cutting, slotting or welding at the head is not accepted.

Design and supply boundaries

• Vehicle impact is not resisted unless designed
• Drainage performance is a coordinated system requirement
• Column moment may control pile and head selection
• Finished levels and service exclusions must be confirmed

Documents to define before release

• Carport layout and column-reaction schedule
• Buried-service and ground information
• Pile and head-interface drawings
• Installation and test plan
• Material, weld and coating records
• As-built position and level record

The Product Data Center shows how this application connects to the product family and configuration route. Public catalogs support orientation only. The approved calculation, drawing, bill of material, quotation, ITP and contract define the supplied scope. Use the Evidence Center to request the records applicable to the actual order.
