Flexible Solar Panel Mounting Structure: Define the System

A flexible solar panel mounting structure should be specified by saying what is flexible and how loads reach the ground. The phrase may describe a flexible PV module attached to a surface, a long-span cable-supported mounting system, a fixed steel frame arranged around difficult terrain, or a tracker that moves during operation. Those are not interchangeable products. Before comparing spans, prices or suppliers, classify the system; identify the module-to-ground load path; and request evidence for its geometry, support conditions, environmental actions and controlled state. If the intended system is cable-supported, pretension, sag, anchors and dynamic response become project inputs—not optional product adjectives.

Define Which Part of the System Is Flexible

The word flexible can refer to a material, a structural response, a layout strategy or an operating movement. A useful specification must separate those meanings.

A flexible PV module can bend within limits defined by its design and installation instructions. Its flexibility belongs primarily to the module assembly. The roof, membrane, adhesive layer, rails or other support beneath it still need their own verified attachment and load-transfer basis.

A cable-supported flexible PV mounting structure is different. Conventional beam-and-purlin support is replaced or supplemented by tensioned load-bearing elements. The structure develops its installed geometry through cable force, sag, boundary restraint and stabilizing components. Its response can be sensitive to wind direction, row interaction and deformation.

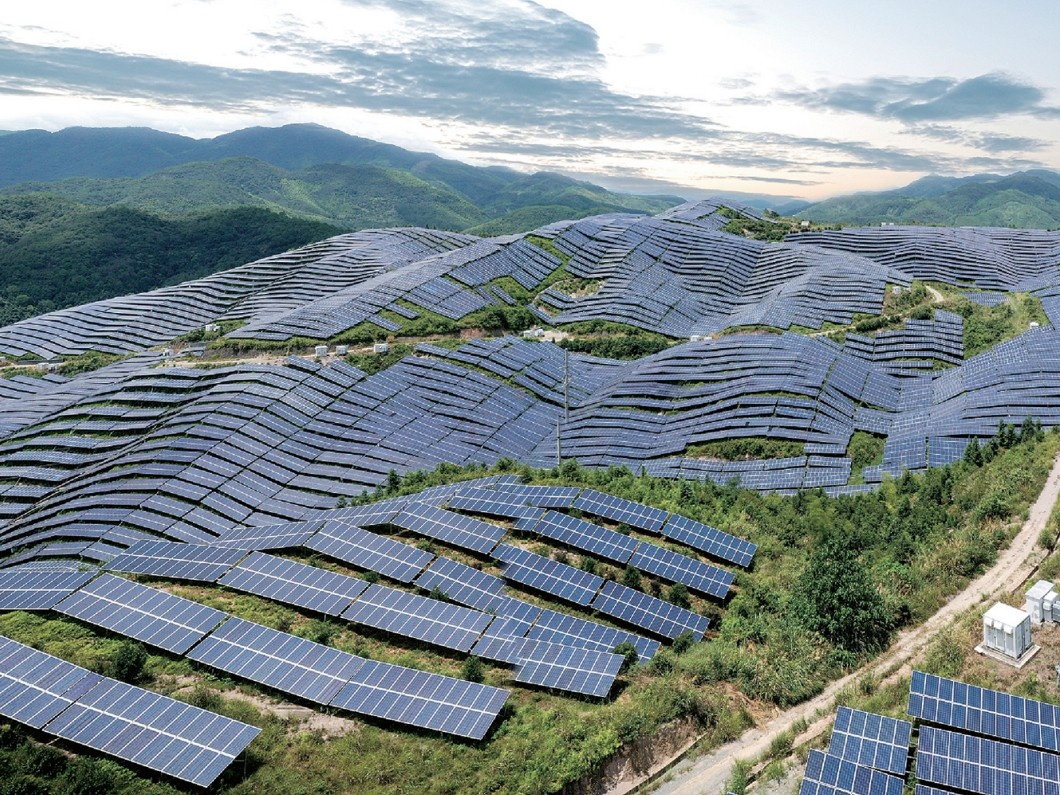

A conventional fixed-tilt frame may also be marketed as “flexible” because it accepts several module sizes, follows terrain or permits configurable post spacing. That is layout or product flexibility. It does not automatically make the structural system cable-supported.

A tracker or seasonally adjustable structure moves by design. Its movement comes from bearings, joints, actuators or manual positions. That operational freedom should not be confused with the geometric nonlinearity and deformation response of a tensioned-cable system.

Use one sentence to declare the intended class before the specification says anything else. For example: “The proposed mounting system is a long-span, pretensioned, cable-supported PV structure,” or “The proposed system uses flexible PV modules on a continuously supported roof assembly.” If the sentence cannot be completed, the procurement package is not ready for like-for-like comparison.

Separate Four Commonly Confused System Classes

The same search phrase can lead to different engineering scopes. Classify the proposal from physical evidence rather than from a brochure heading.

Do not assign a class from span alone. Do not assign it from the use of the word lightweight. Do not assume that a system crossing a ditch is cable-supported, or that every cable-supported arrangement uses the same number of load-bearing and stabilizing cables. The class should follow the proposed configuration and its load path.

This classification also protects internal routing. A request about module bending belongs with the module and attachment authorities. A request about pretension and wind-induced response belongs with the cable-system designer. A terrain-layout question belongs with civil and fixed-frame coordination. A stow question belongs with tracker design and controls.

Trace the Load Path Before Comparing Features

A supplier comparison becomes meaningful only after every proposal shows how the same project action travels through the system. Begin at the module and continue without a missing interface until the load reaches competent ground or the supporting building.

For a cable-supported arrangement, that path may include module clamps, transverse or longitudinal connectors, load-bearing cables, stability or wind-resistant cables, struts, end beams, columns, stays, anchors and foundations. The exact sequence varies by system. That is why a generic “steel support capacity” statement cannot replace a configuration-specific load-path drawing.

For a flexible module installed on a roof, the path is different: module surface, bonded or mechanical attachment, substrate or membrane, roof deck and building structure. The allowable curvature of the module does not establish the capacity of the adhesive, roof membrane or deck. Nor does a roof attachment test automatically qualify the module for every bend radius or support spacing.

Create a one-page identity card for each offered system:

If two proposals cannot populate the same identity fields, compare them first as different engineering concepts. Only after the owner or EPC accepts the concept boundary should commercial normalization begin.

Demand the Right Evidence for Cable-Supported Structures

When the intended meaning is a long-span cable-supported mounting system, the specification needs more than member grades and a maximum-span claim. Its installed shape and response depend on a coupled set of variables.

Start with geometry and boundary conditions. Record the analyzed span or bay arrangement, module layout, tilt, cable profile, support elevations, intermediate restraints and end conditions. State whether adjacent rows, longitudinal connectors or stabilizing members are included in the model. A model for an isolated row should not silently represent a multi-row array when interference effects are material to the design method.

Then define pretension as a state. Name the element, target basis, reference condition, permissible range, measurement or inference method, sequence and acceptance record. “Tighten cables” is a work instruction, not a structural state. Temperature, construction sequence and support movement may alter the measured condition; the responsible designer must define how those effects are handled.

Wind evidence must address the proposed configuration. A 2024 peer-reviewed study on the static and dynamic response of flexible photovoltaic mounts evaluated how span, prestress and reinforcement choices affect response under fluctuating wind. A 2026 wind-tunnel study of a four-cable-supported photovoltaic structure measured both displacement and cable force and reported material differences by wind direction and array-row position. These papers do not approve a commercial project. They demonstrate why a cable-supported proposal needs configuration-specific static, stability, dynamic and aerodynamic reasoning rather than a generic material certificate.

Ask the responsible structural authority to define which load cases, combinations, analysis methods and tests govern the project. Request traceable inputs and outputs for member forces, cable forces, deformation, connection demand, support reaction and anchor/foundation demand. Where analysis relies on wind-tunnel, computational or full-scale evidence, the submission should explain similarity between the tested or modeled arrangement and the proposed array—and state where extrapolation begins.

Keep Module Qualification Separate from Structural Approval

Module and mounting evidence meet at an interface, but one does not substitute for the other.

IEC 61215-1:2021 addresses design qualification and type approval test requirements for terrestrial PV modules. Its published scope includes test methods for flexible modules, including a bending test. That is relevant when the offered module itself is flexible. By scope, however, a module qualification does not establish the capacity, stability or wind response of a project-specific cable support, roof connection or foundation.

Conversely, a structural calculation for the mounting system does not prove that a module can accept the modeled clamp arrangement, local support, curvature or relative movement. The controlled module documentation should define permitted mounting zones, fasteners or adhesives, support conditions and other installation limitations. The mounting designer should show those limitations in the analysis model and drawings.

The current consolidated IEC 62548-1:2023 with Amendment 1:2025 sets PV-array design requirements and notes revised mounting-structure provisions. Use it as part of the array-design framework, together with the project’s governing structural, electrical, geotechnical, building and contractual requirements. Its public description does not supply project wind values, cable pretension or foundation capacity.

Close the module-to-structure interface with four matched records: the controlled module data and installation requirements; the proposed attachment detail; the mounting analysis boundary; and a drawing/BOM revision that uses the same configuration. If any record refers to another module, clamp, cable arrangement or revision, the interface remains open.

Route Ambiguous Proposals Before Comparing Them

Ambiguity should trigger a routing decision, not a request for another generic quotation.

The hold is important. If one bidder prices a cable-supported long-span structure while another prices terrain-following fixed tables, a low total may reflect a scope difference rather than efficiency. If one quotation includes anchors and foundation reactions while another ends at an end frame, the totals are not commercially comparable. If one supplier assumes a specific flexible module and another assumes a framed glass module, their attachment details may address different products.

Record the classification as a tender clarification. Require the bidder to confirm deviations from the requested class and to label alternatives explicitly. An alternative may be valuable, but it should be evaluated as a deliberate concept change with its own design responsibility, interfaces, program and risk—not blended into the base offer.

Rewrite the Specification and RFQ

Replace the ambiguous phrase with a short system-definition block. It should state the intended class, project use case, configuration boundary and evidence expected at each decision stage.

For a cable-supported concept, the RFQ inputs should include site and array references; module identity and mounting constraints; row arrangement; target spans or obstacle zones; clearance and land-use requirements; topographic and geotechnical information available; environmental design criteria; corrosion environment; design life basis; and the contractual codes and approval roles. Mark every missing item as a bidder assumption to be returned for acceptance—not as permission to invent a final value.

Ask for outputs in stages. A concept submission may show system class, load path, representative geometry, principal materials, preliminary reactions, critical assumptions and excluded interfaces. A developed design submission may add calculations, model identity, wind or dynamic evidence, member/connection checks, anchor and foundation demands, drawings, installation-state requirements and an inspection/test outline. Fabrication release should wait for approved revisions and closed interfaces.

Use precise commercial line items. Separate mounting superstructure, cables and terminations, module attachments, end and intermediate supports, anchors or stays, foundations, coating, transport, erection tools, pretension measurement, field testing, supervision, commissioning records and spare parts. The exact split can follow the contract, but exclusions must be visible.

Do not write universal numerical requirements merely to make the RFQ look complete. Span, pretension, deflection, wind resistance, embedment and corrosion protection depend on the selected system, site, materials, design criteria and interfaces. Put project values in controlled schedules and calculations after the responsible authorities release them.

Pass the System-Definition Gate

The proposal can pass the definition gate only when the buyer can identify what is being purchased, which evidence applies and who owns each boundary.

The core decision is simple: define the physical system before evaluating the product claim. If “flexible” refers to the module, verify the module and its actual attachment. If it refers to a cable-supported mounting structure, verify the installed geometry, pretensioned load path, supports, anchors and wind-sensitive response. If it describes terrain adaptability or operational movement, route the proposal to the correct fixed-frame or tracker review.

For a useful first review, send one representative array zone, the proposed configuration drawing, module data, site design criteria and a marked scope boundary. East Baoyu can then help organize the steel and mounting-supply discussion around the selected system class while the project’s accountable designers retain approval of structural, geotechnical and electrical decisions.
